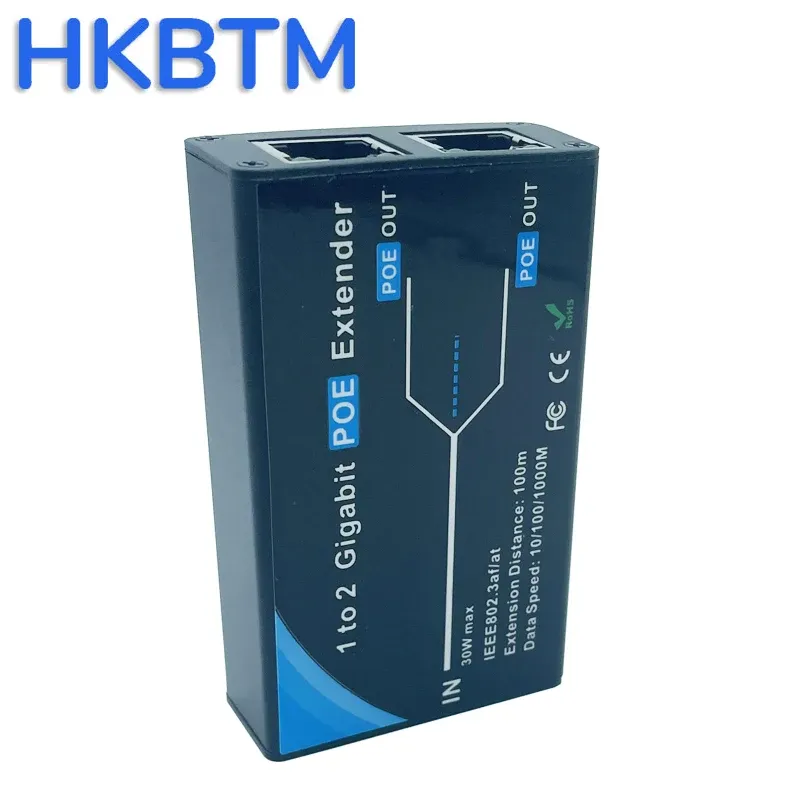

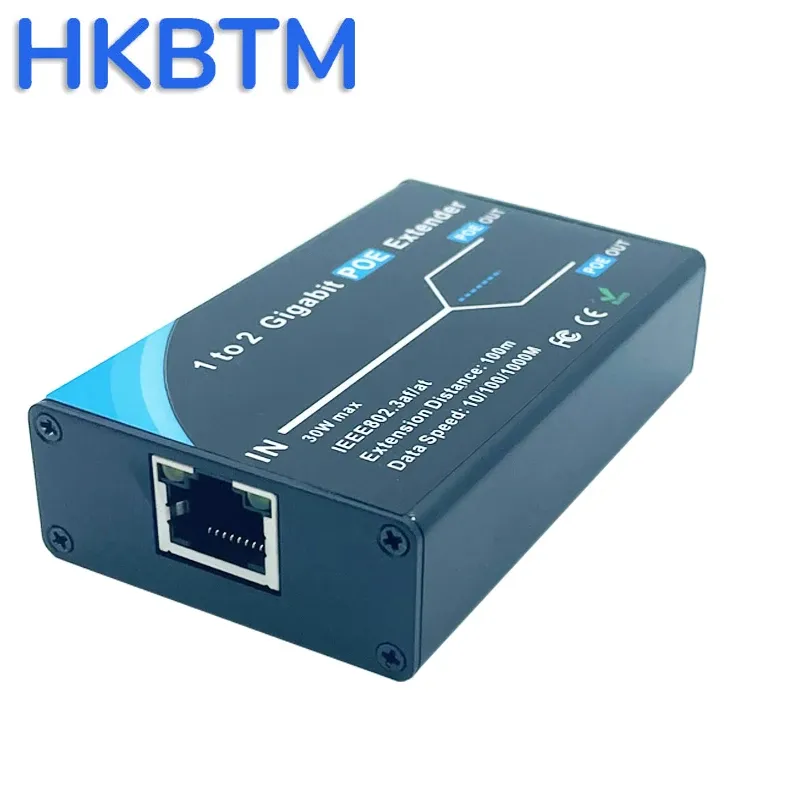

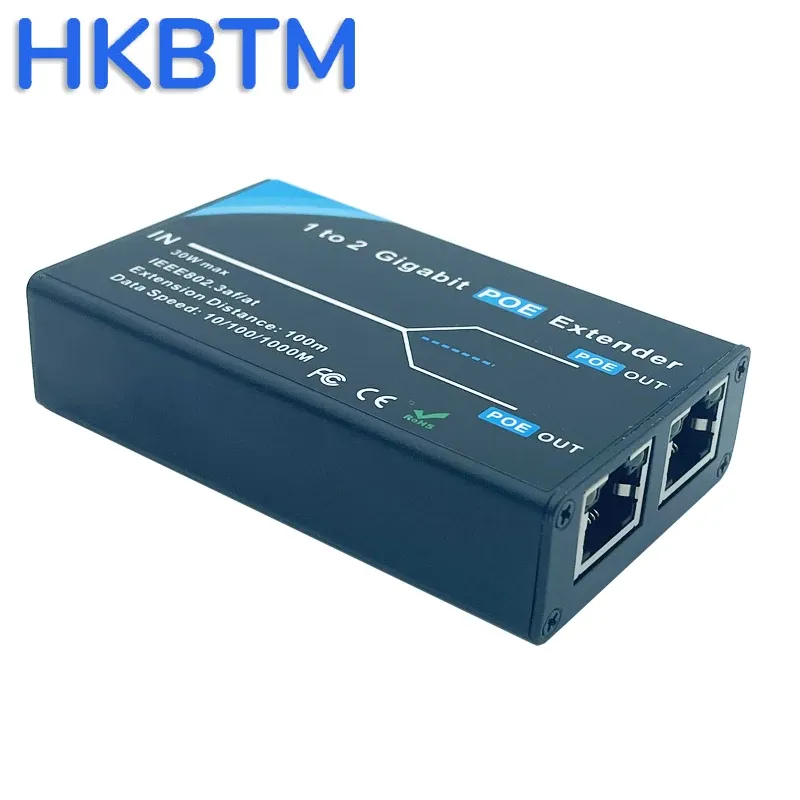

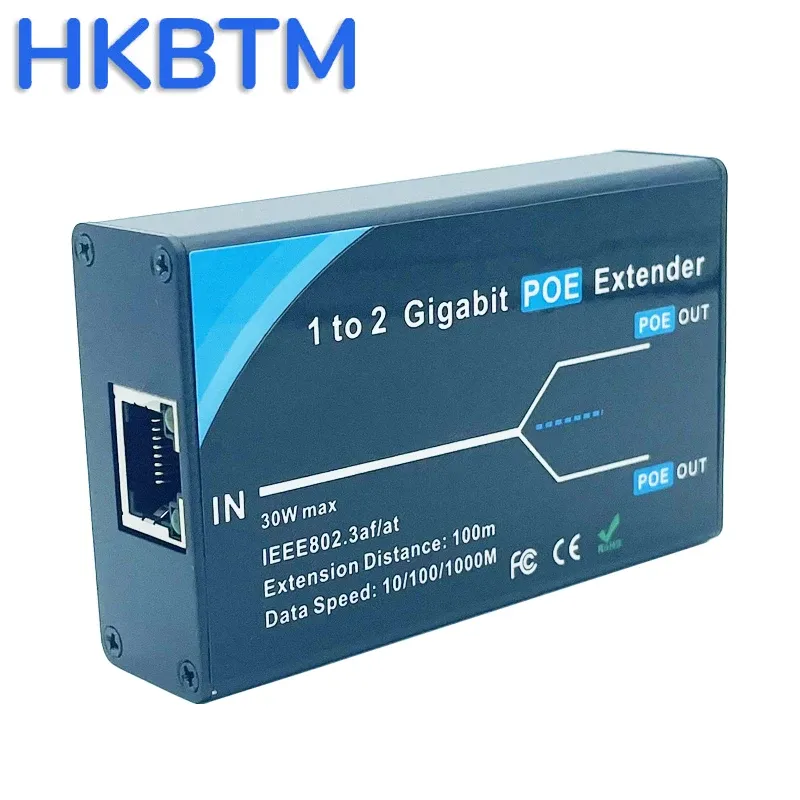

Gigabit 2 Port POE Extender, IEEE 802.3af/at PoE+ Standard, 10/100/1000Mbps, POE Repeater 100 meters(328 ft), Extender

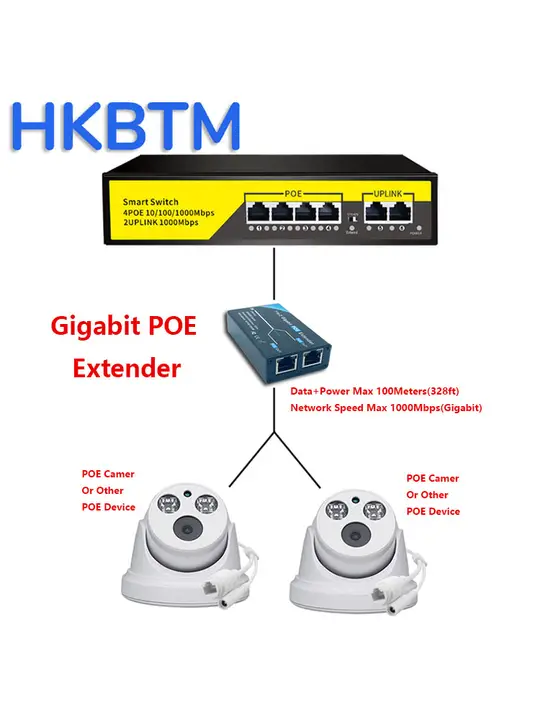

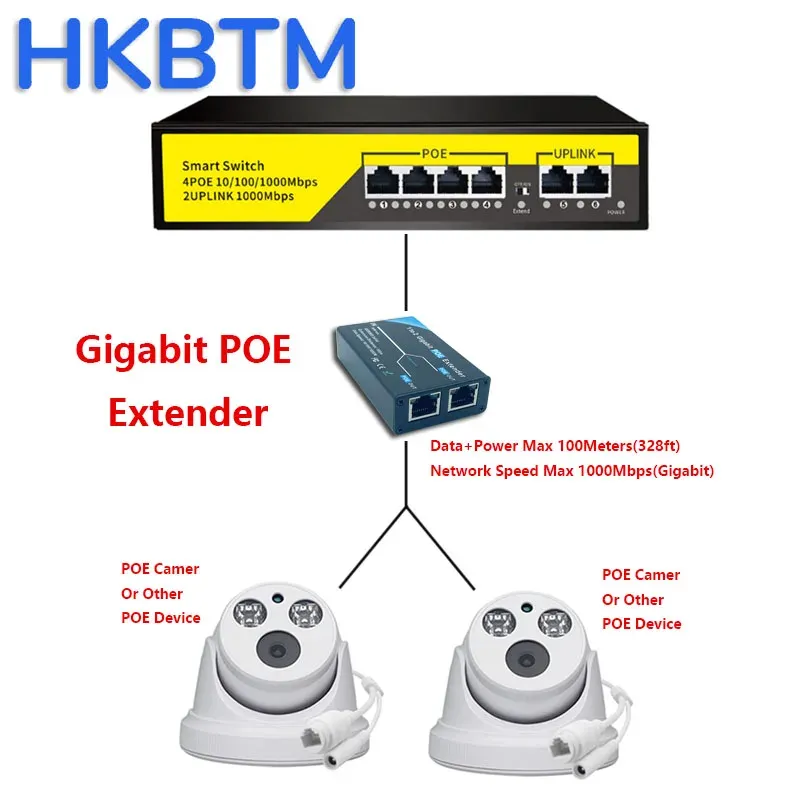

PoE Extender is a cost effective way to extend the Ethernet network range beyond 100m, delivering both data and power to network devices such as WLAN Access Points and Network Cameras in Gigabit speed 1000Mbps, up to a distance of 200m while complying with IEEE PoE and Data standards.

Specification

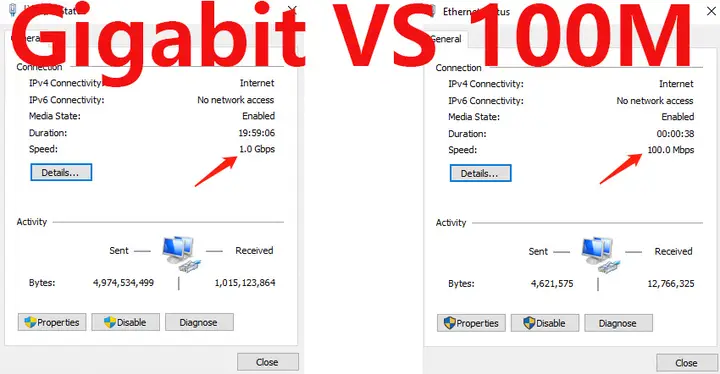

• Data Speed: 10/100/1000Mbps
• PoE input: 1 RJ45 port(DC 48-57V)
• PoE output: 2 RJ45 port
• Input power: 30 Watts Max
• Output power: 15.4 Watts Max
• Network Medium: Cat5e,Cat6,Cat6e,UTP cable(less than 120m)
• Daisy Chain Distance: up to 700m(6 pieces)
• Repeater Mode: Store and forward
• MAC Address Table: 2K
• Packet Buffer Memory: 48 Byte
• Switching Capacity: 400Mbps
• PoE Standard: IEEE 802.3af/at
• PoE Cable Core: 1/2(+), 3/6(-)
• Power Supply Type: Mode A,End-Span
• LED Display: PoE Working status, Ethernet
• Network Protocol: IEEE 802.3i-10BASE-T, IEEE 802.3u: 100BASE-TX, IEEE 802.3x-Flow Control, IEEE 802.3af-Power over Ethernet.
• Electromanetic Radiation: FCC Class A, CE
• Storage Humidity: 5%~90%, No Condensation
• Operating temperature: -10～45℃
• Dimension: 88mm*44mm*22mm
• Weight: 92g(1000M)/52g(100M)

Package Content

1x Gigabit 2 Port POE Extender

or

1x 100M 2 Port POE Extender
