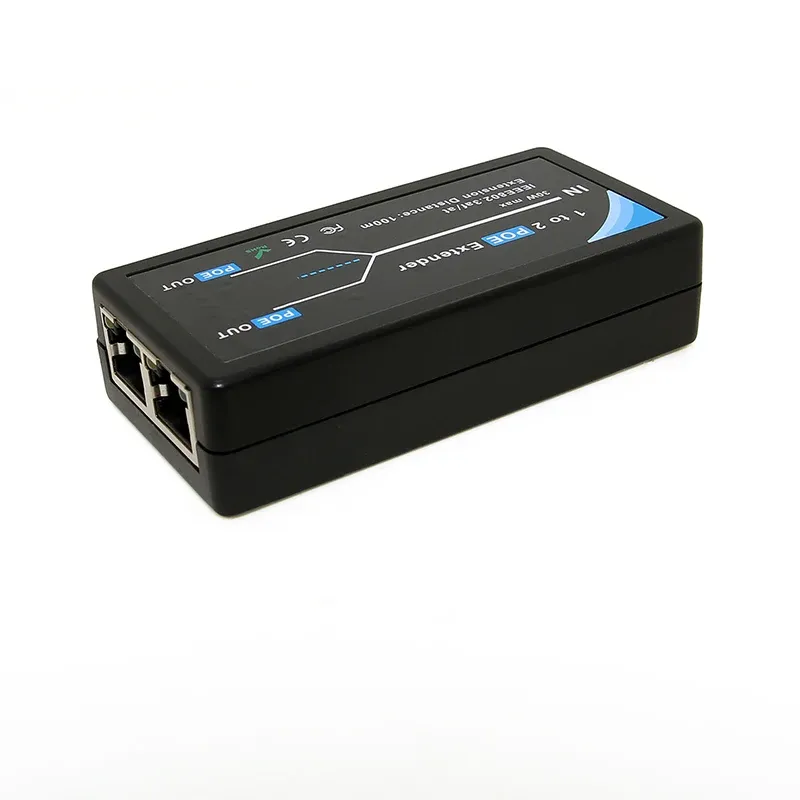

2 Port POE Extender 100Mbps with IEEE 802.3af Standard for NVR IP Camera AP IP VOICE POE Extend 100 meters for POE range
2 Port POE Extender 100Mbps with IEEE 802.3af Standard for NVR IP Camera AP IP VOICE POE Extend 100 meters for POE range
- IEEE 802.3af compliant
- POE output: 2 RJ45 port (48V, 802.3af)
- 100% tested · OEM/ODM available
Product Video
Description
POE Extender More option
POE Extender More option
POE Extender with IEEE 802.3af Standard Input / Output for IP Camera Extend 100 meters for POE range
1-2Port 10/100Mbps POE Extender with IEEE 802.3af Standard Input / Output for IP Camera Extend 100 meters for POE range

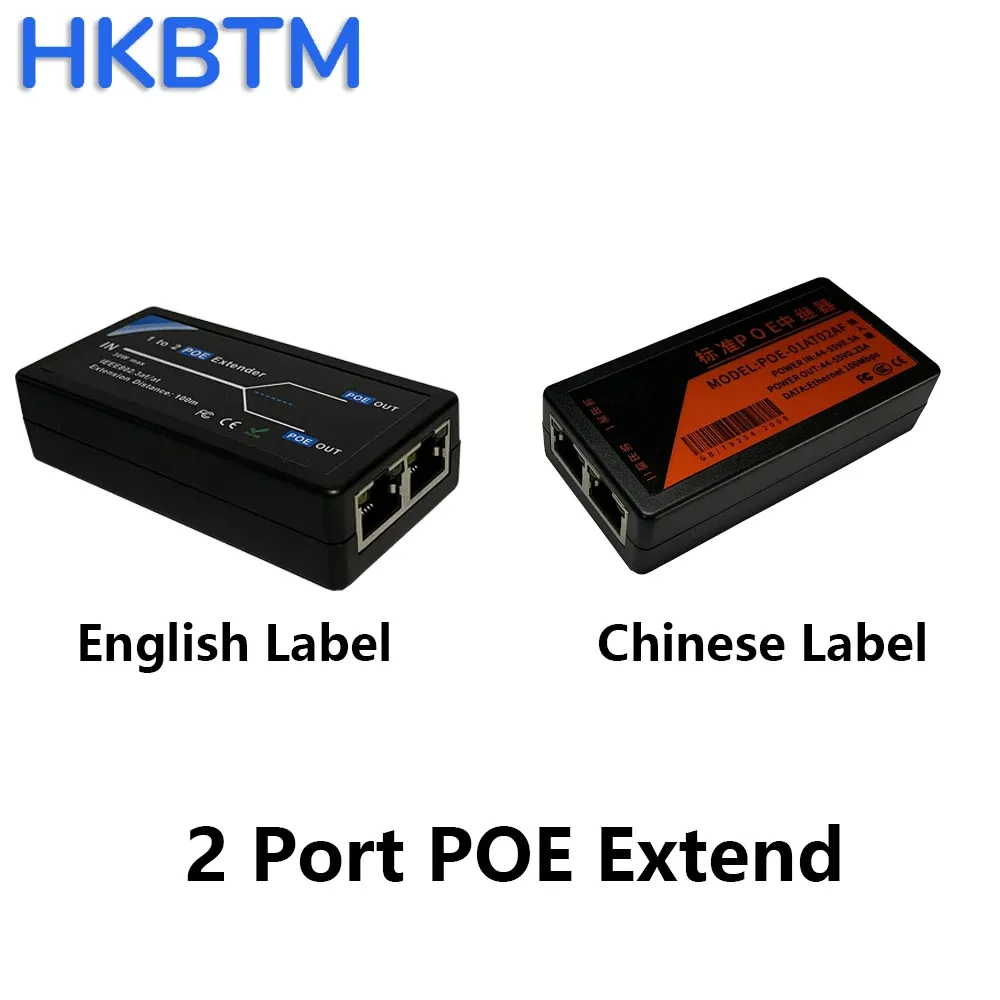

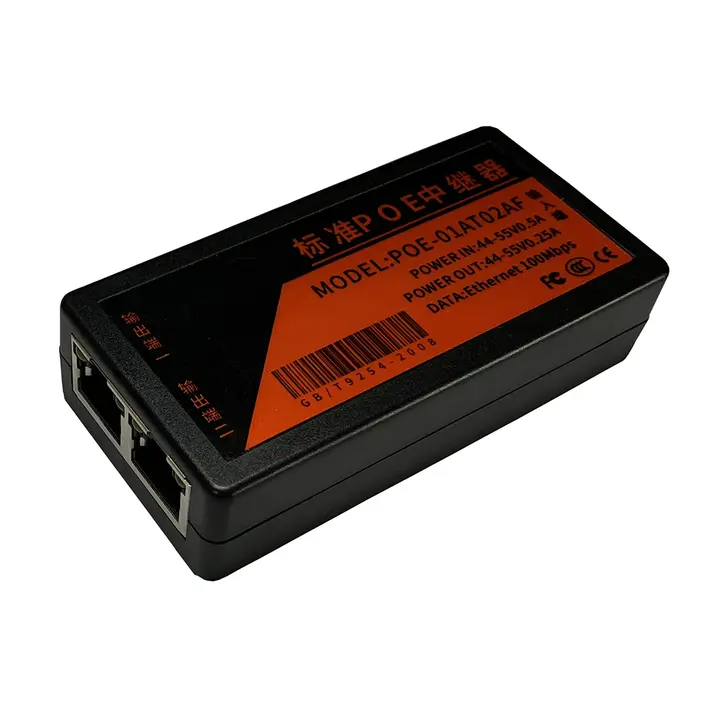

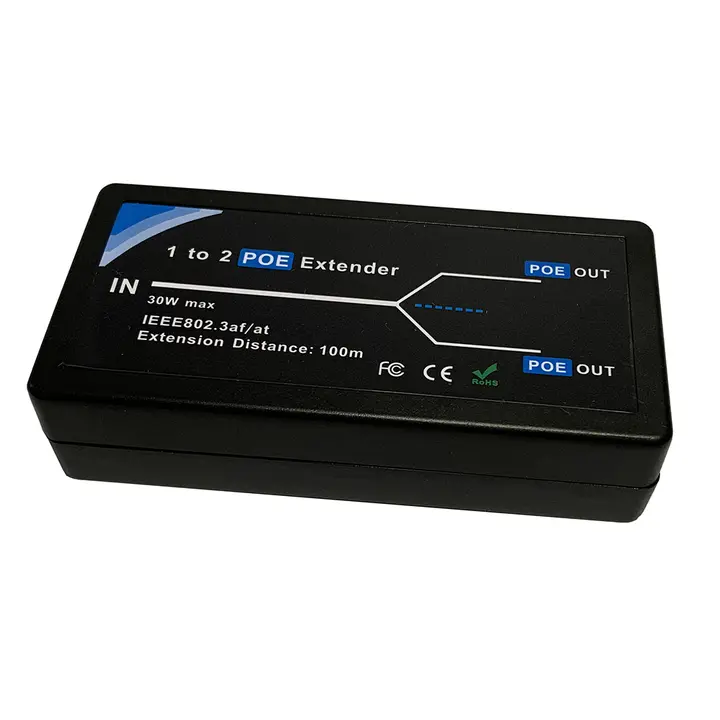

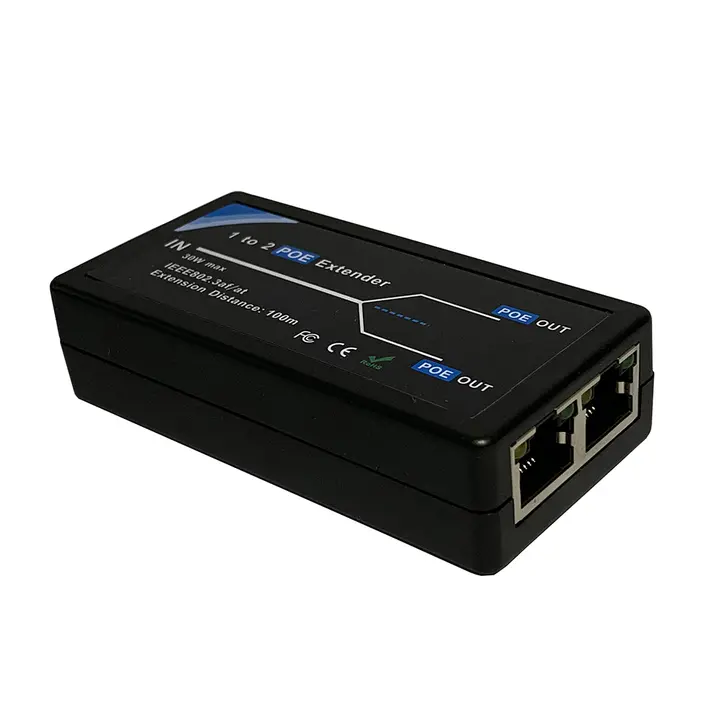

English label

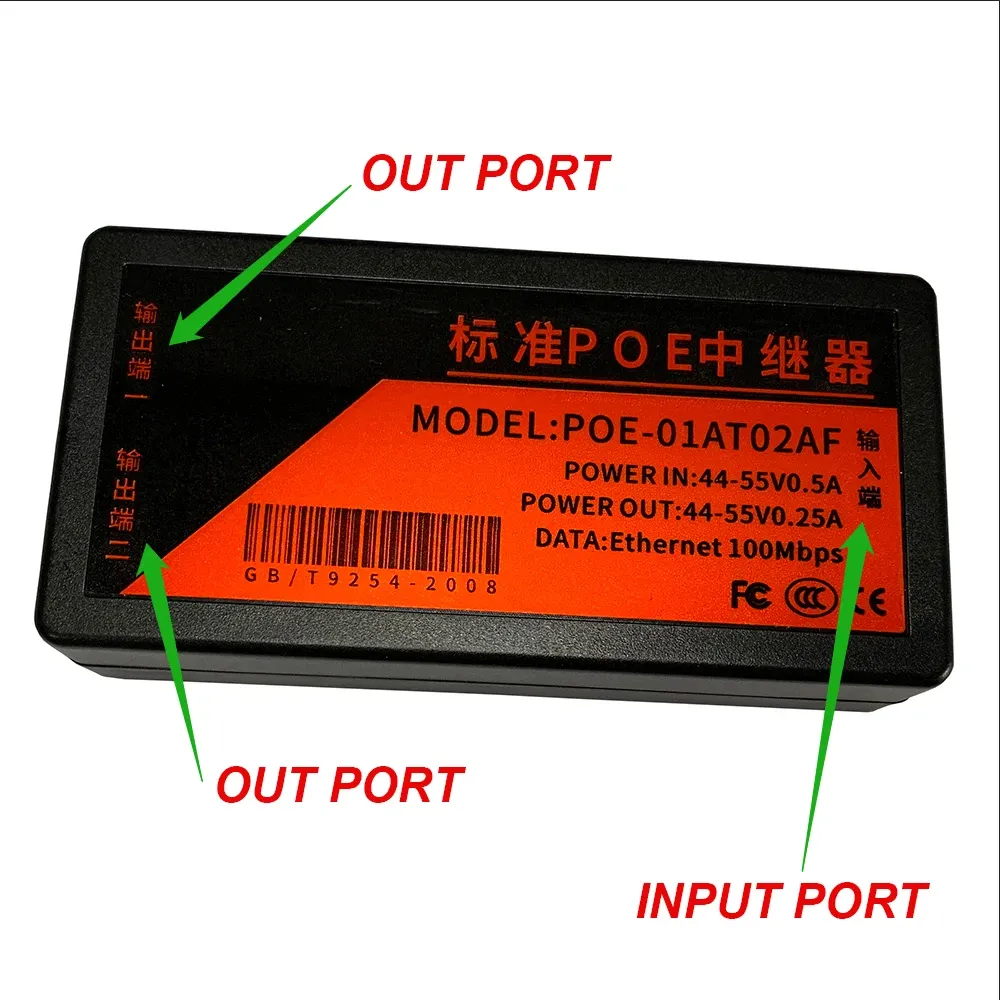

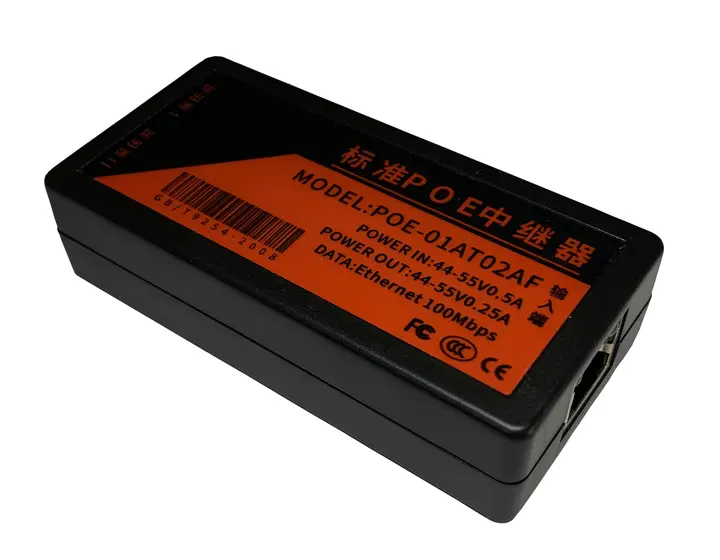

Chinese Lable

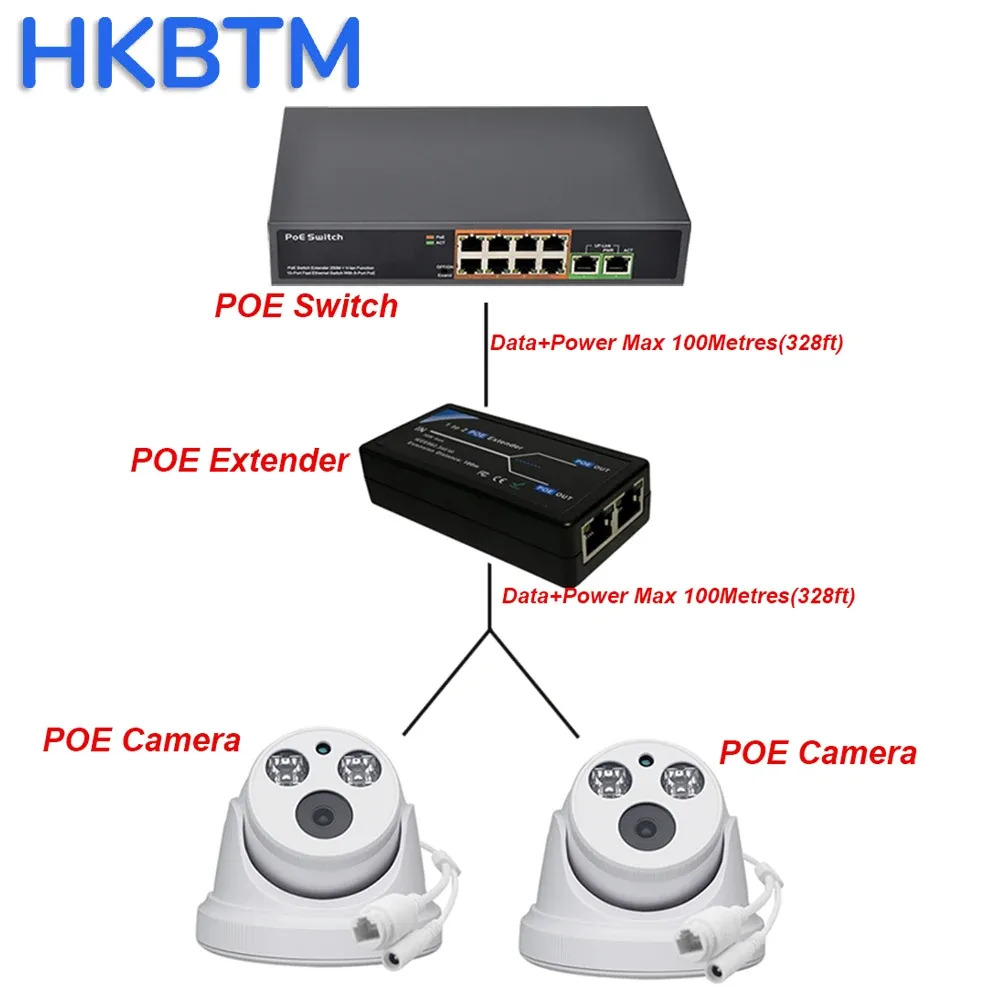

easy installation
Features
Comply with IEEE 802.af Power over Ethernet (10/100M Supported)

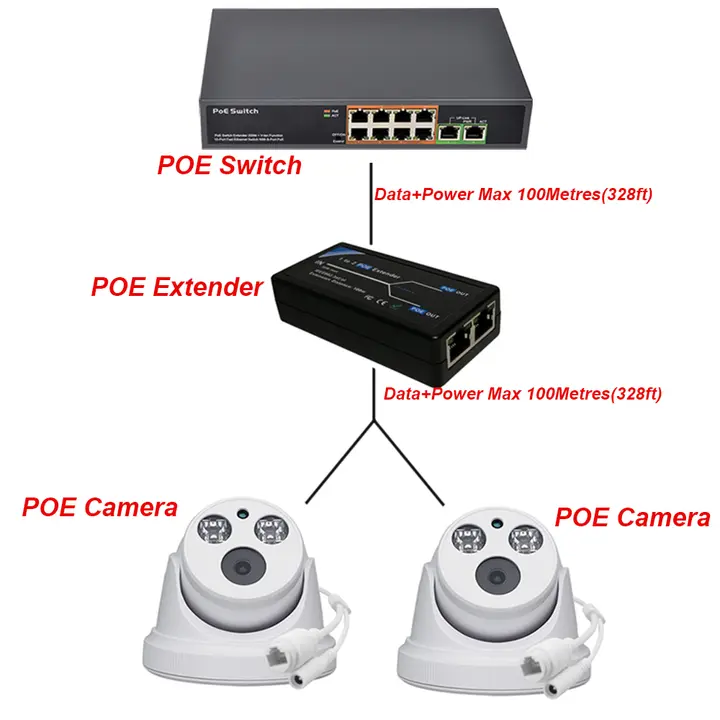

Extender the range of PoE an additional 100 meters
Automatically detects and protects PoE equipment from being damaged by incorrect installation
Plug-and Play no configuration required
2 Port PoE extender can forward both Ethernet and PoE power for 1 terminal equipment via Cat5 ,Cat5e,Cat6,Cat6e,UTP cable.
2-Port PoE Extender has 3 10/100M Lan ports, among them, one for power input, the other two for power output. Comply with 10/100BASE-TX,IEEE 802.3 af-PoE.
Power input for one port is 13W. Power output for four port is 12.2W.
Used with AP, IP camera, IP telephone and the other network equipment in the situation of the lack of power line or far away from the power outlets
Installed at hotels, schools, buildings, villages, etc.
Specification

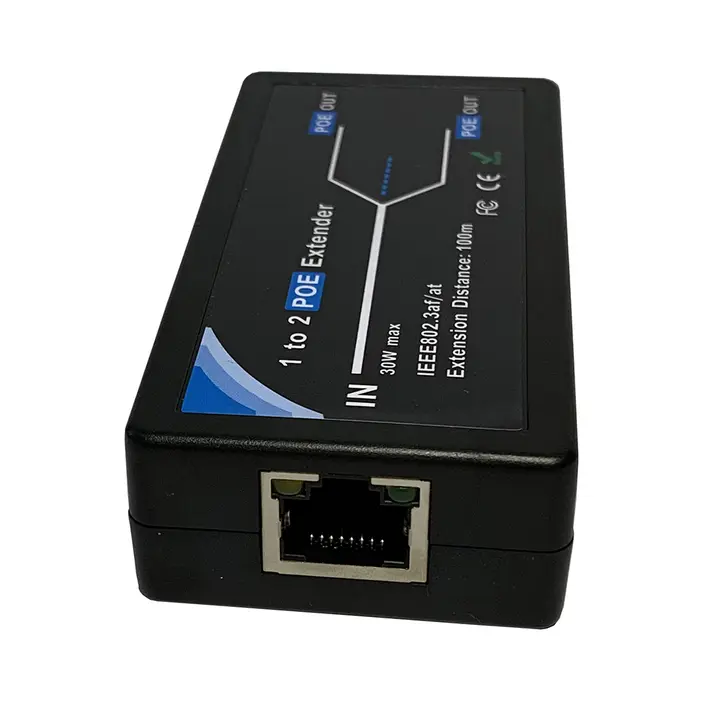

- POE input: 1 RJ45 port (DC 44-57V, 802.3at)
- POE output: 2 RJ45 port (48V, 802.3af)
- POE Pin Output: 1/2(+), 3/6(-)； MAX Power 15W
- Network Medium: Cat5 or better UTP cables (less than 120m)
- Repeater Mode: Store and forward
- MAC Address Table: 2K
- Packet Buffer Memory: 48 Byte
- Switching Capacity: 1.0Gbps
- PoE Standard: IEEE 802.3af
- Input power: 13 Watts
- Output power: 12.2 Watts
- Power Supply Type: 1/2+,3/6-,Mode A, End-Span
- Network Protocol: IEEE 802.3i-10BASE-T, IEEE 802.3u: 100BASE-TX, IEEE 802.3x-Flow Control, IEEE 802.3af-Power over Ethernet;
- Regulation Compliance: FCC Part 15B, ROHS Directive 2011/65/EU, Low Voltage Directive 2014/35/EU,EMC Directive 2004/108/EC;
- Working temperature: -10°c to 45°c
- Working Humidity: 5%~90%, No Condensation;

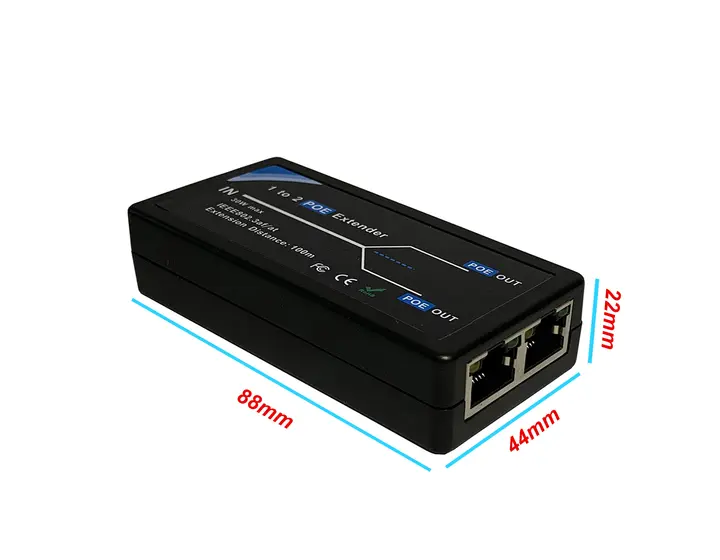

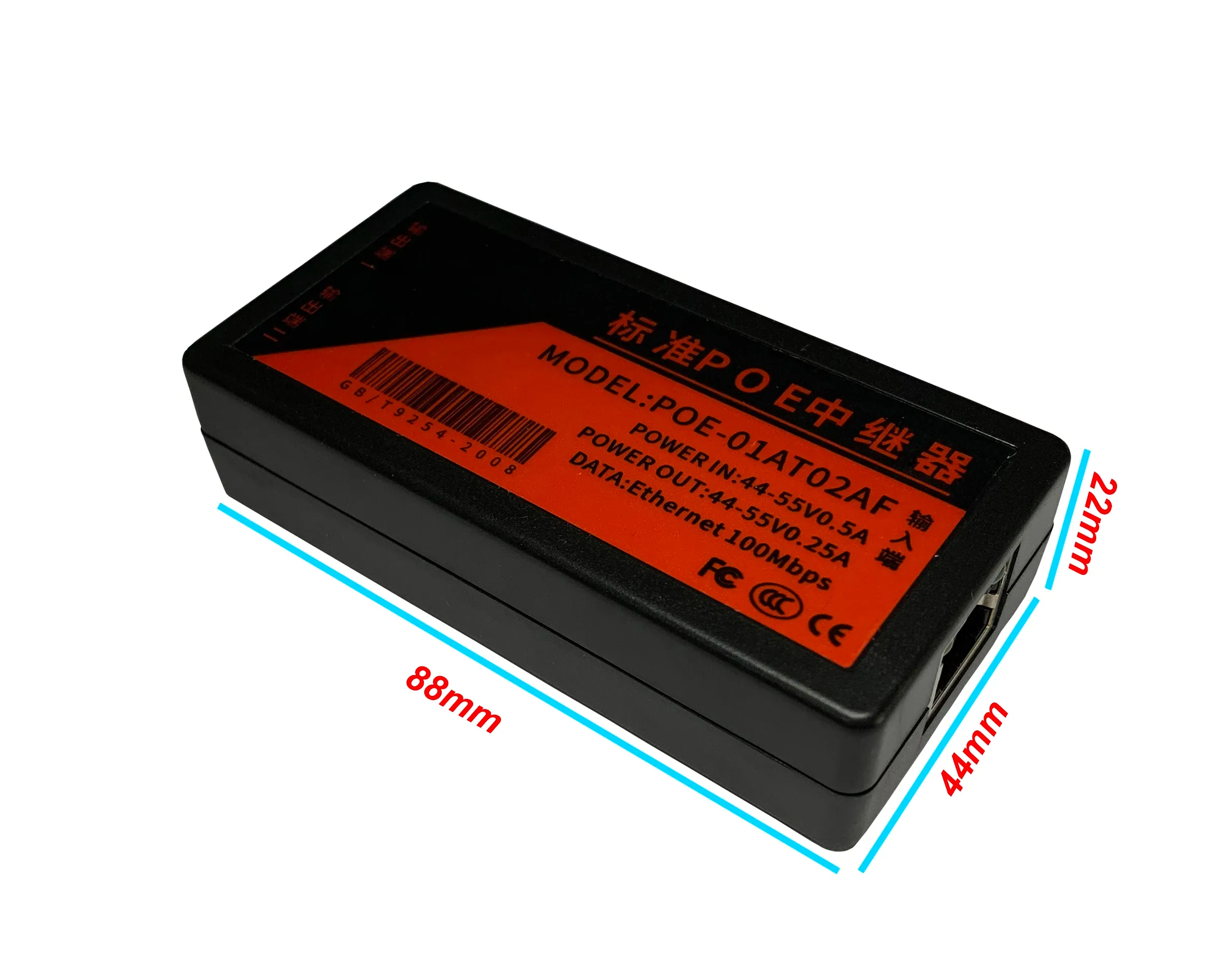

- Dimension: 44x88x22mm / 2.95'' x 3.46'' x 0.86''
- Weight: 52g
Why Besteam
Specifications
| POE input | 1 RJ45 port (DC 44-57V, 802.3at) |
| POE output | 2 RJ45 port (48V, 802.3af) |
| POE Pin Output | 1/2(+), 3/6(-)； MAX Power 15W |
| Network Medium | Cat5 or better UTP cables (less than 120m) |
| Repeater Mode | Store and forward |
| MAC Address Table | 2K |
| Packet Buffer Memory | 48 Byte |
| Switching Capacity | 1.0Gbps |
| PoE Standard | IEEE 802.3af |
| Input power | 13 Watts |
| Output power | 12.2 Watts |
| Power Supply Type | 1/2+,3/6-,Mode A, End-Span |
| Network Protocol | IEEE 802.3i-10BASE-T, IEEE 802.3u: 100BASE-TX, IEEE 802.3x-Flow Control, IEEE 802.3af-Power over Ethernet; |
| Regulation Compliance | FCC Part 15B, ROHS Directive 2011/65/EU, Low Voltage Directive 2014/35/EU,EMC Directive 2004/108/EC; |
| Working temperature | -10°c to 45°c |
| Working Humidity | 5%~90%, No Condensation; |
| Dimension | 44x88x22mm / 2.95'' x 3.46'' x 0.86'' |
| Weight | 52g |
