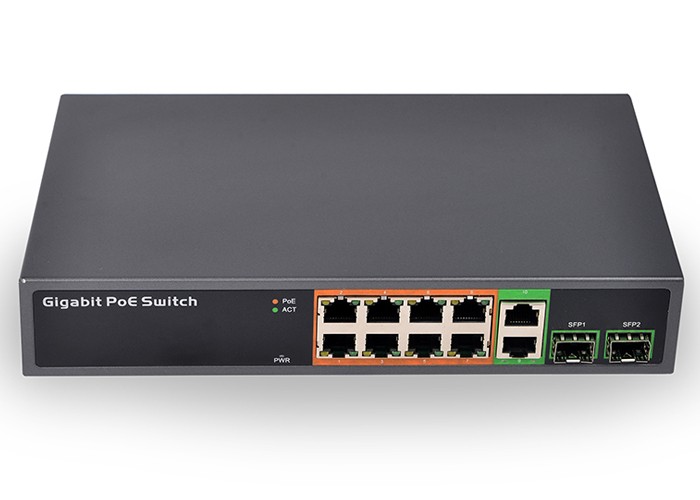

Product Overview
Modern business networks are used for increasingly diverse applications – traditional data streams, VoIP voice traffic, video output from digital security cameras and remote control devices to name a few. The range of devices attached to today’s converged network often need to be supported not just in terms of data – equipment such as VoIP IP telephones and Wireless Access Points frequently need to be powered in physical locations where mains power is not available or difficult to deliver. Providing power to such devices via an Ethernet UTP cable is an elegant and easy to implement solution.
compatible to IEEE802.3af/at. It can power both existing
10/100Base-T network devices Wi-MAX and wireless
IEEE 802.11n access points.
Ordering Information
Part Number Description
8-Port 10/100/1000Mbps /8Port PoE +2 Gigabit Uplink + 2 SFP
TP/SFP Combo Ports Switch (150W)
High Performance Wire-Speed Switching
offers 8 10/100Mbps Fast Ethernet ports and 2 Gigabit TP/SFP ports. The two Gigabit TP ports can be either 1000Base-T for 10/100/1000Mbps o interface. PSE1008GSR boasts a high performance switch architecture that is capable of providing non-blocking switch
fabric and wire-speed throughput as high as
5.6Gbps. Its two built-in GbE uplink ports also
offer incredible extensibility, flexibility and connectivity to the Core switch or Servers.
Features
Up to 30W of Power on
IEEE 802.3af/at
Compatible With All IEEE 802.3af/at or Legacy
Safe: Low Power Devices Receive Only the Power TheyNeed
Safe and Reliable Power to WLAN Access Points
Automatic Detection and Protection of Non–standardEthernet Terminals
Supports 10/100 Base-T applications
Compact Design Fits Easily in WLAN Access
Plug-and-Play no configuration required
Internal power supply
Easy installation and maintenance
Save up to 83% power with Green Technology
complies to IEEE 802.3af PoE standard and is backward
Hardware Specification
10/100Mbps Copper Ports | 8* 10/ 100/1000Mbps Base-TX RJ-45 Auto-MDI/MDI-X ports |
1000Mbps Copper Ports | 2* 10/100/1000Mbps RJ-45 Auto-MDI/MDI-X ports |
SFP/mini-GBIC Slots | 2* 1000Base-SX/LX, shared with Port-9~Port-10 |
Switch Architecture | Store-and-Forward |
Switch Fabric | 20 Gbps / non-blocking |
Switch Throughput | 4.17Mpps @64Bytes |
Address Table | 8K entries |
Share Data Buffer | 512Kbytes |
Maximum Frame Size | 9K Bytes |
Flow Control | Back pressure for Half-Duplex IEEE 802.3x Pause Frame for Full-Duplex |
LED | Power (yellow );POE(yellow) 10/100 LINK / ACT (Green) 1000 ACT(Green);1000 LINK(yellow) |
| Reset Button | < 5 sec: System reboot > 5 sec: Factory Default |
| Dimension (W x D x H) | 250 x 150 x 44 mm, 1U height |
| Weight | 1.6 kg |
| Power Requirement | 100~240V AC, 50-60 Hz |
| Power Consumption / Dissipation | 150 Watts maximum /510 BTU/hr maximum |
Power over Ethernet
PoE Standard | IEEE 802.3af/at Power over Ethernet / PSE |
PoE Power Supply Type | End-Span |
PoE Power Output | Per Port 52V DC, 350mA~600ma . Max. 30 Watts |
Power Pin Assignment | 1/2(+), 3/6(-) |
PoE Power Budget | 130 Watts |
Max. number of Class 3 PD | 8 |
Standards Conformance
Standards Compliance | IEEE802.3:10Base-T IEEE802.3u: 100BaseTX IEEE802.3z:1000Base-SX/LX IEEE802.3ab:1000Base-T IEEE802.3af/at: Power over Ethernet |
Environemmental
Operating | Temperature: 0 ~ 50 Degree C Relative Humidity: 20 ~ 95% |
Storage | Temperature: -10 ~ 70 Degree C Relative Humidity: 20 ~ 95% (non-condensing) |
