IEEE802.3af/at 8port 100Mbps + 2 Uplink with 250 meters extender function poe switch

Product Overview



The PoE Switch PSE108EX provides 2 x 10/100Mbps and 8 x 10/100Mbps PoE Plus ports. This switch is IEEE 802.3af/at compliant, and provides power and data over a single Ethernet cable to any PoE device, with total power budget of 96W, up to 30W per port. , which  provides  convenient  and  flexible  installation.  The  PSE108EX  is designed for small businesses that prefer an affordable solution for PoE deploying infrastructure.



Cost Effectiveness And Enhanced Flexibility



Featuring Power over Ethernet , which nearly doubles the power delivery comparing to the IEEE 802.3af/at PoE technology. Furthermore, it ensures that the power is used more efficiently due to the maximum power will only be requested when it is needed. Thus providing great cost savings by reducing power bills and eliminating the need for additional power cables and outlets.



Key Features



IEEE 802.3af/at PoE compliant to simplify deployment and installation

Auto-detection and protection of non-standard PoE devices

IEEE 802.3x flow control protects against lost packets for reliable data transmission

Simple Plug and Play installation

switch Extend ,1-4Port V-Lan on; 5E cat Cable Distance 250M;Data Rate 10Mbps

Total PoE power budget: 96W, up to 30W per port

Compact Design Fits Easily in WLAN Access

Easy installation and maintenance



Technical Specification


Standards

IEEE 802.3 10-BASE-T (Ethernet)

IEEE 802.3u 100-BASE-TX (Fast Ethernet)

IEEE 802.3x Flow Control (full-duplex flow control) IEEE 802.3af Power over Ethernet

IEEE 802.3at Power over Ethernet

PoE Spec

PoE Standard: IEEE 802.3af/at Power over Ethernet / PSE PD classification identity

PoE over current protection

PoE circuit sorting protection

PoE Power Output: Per Port 54V DC, Max. 30 watts

(IEEE 802.3af/at)

Power Budget: Max. 96W

Power Pin Assignment: 1/2(+), 3/6(-)

Transmission Media

10 BaseT Cat 3,4,5 UTP/STP

100M BaseTx CAT 5 UTP/STP

Filtering/Forwarding Rates

100Mbps port-148,000pps

10Mbps port-14,880pps

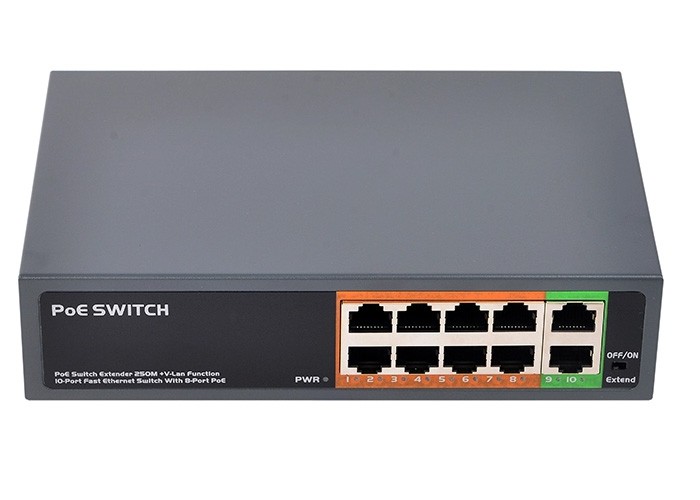

LED Indicators

Per Port: Link/Act(Green),

Power:PWR(Green)

Network Interface

8 x 10/100Mbps RJ-45 PoE 1~8 Ports

2 x 10/100Mbps RJ-45 Uplink 9~10 Ports

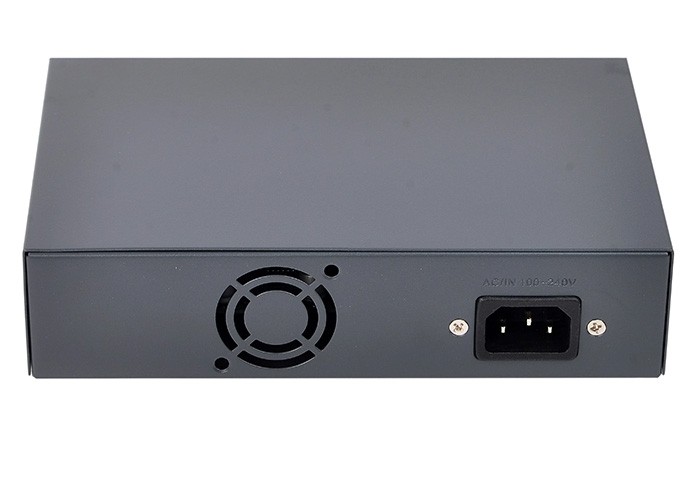

Power Input

Input: 100~240V/AC, 50~60 Hz, 2A Internal Power Supply

Power Consumption

96Watts(Max)

Extend/ON

1~4Port 10Mbps POE+Vlan 250M ;5~10Port 10/100Mbps

Dimensions: (L x W x H) / Weight

185*123*44mm / 1100g
TemperatureOperating: -5 ~ 45°C Storage: -20~70°C

Humidity: 10~90%, Non-condensing

CertificationsCE/FCC
