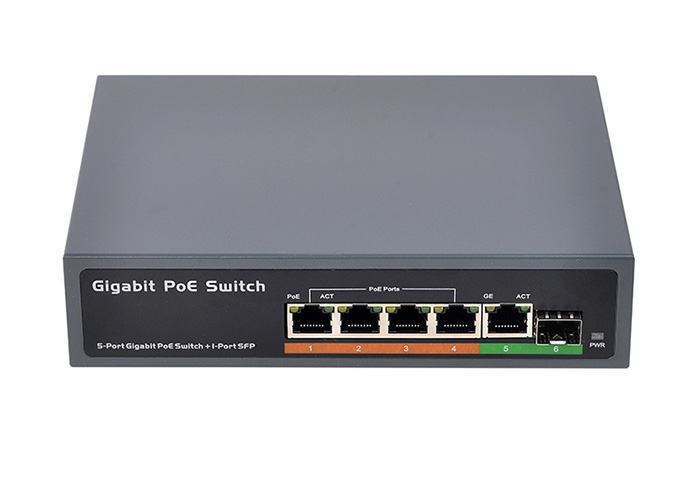

4 port POE + 1 port uplink + 1 port SFP 65W IEEE802.3at / af standard all gigabit POE network switch
Specification
The PSE604GS offers 5 10/100/1000Mbps RJ45 ports and 1 Gigabit SFP ports. The Gigabit SFP ports can be for 1000Base-SX/LX through SFP (Small Factor Pluggable) interface. PSE604GS boasts a high performance switch architecture that is capable of providing non-blocking switch fabric and wire-speed throughput as high as 12Gbps. Its built-in GbE uplink ports also offer incredible extensibility, flexibility and connectivity to the Core switch or Servers.
Standards Conformance | |
Standards Compliance |
IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX/100Base-FX IEEE 802.3z Gigabit SX/LX IEEE 802.3ab Gigabit 1000Base-T IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet |
Environemmental | |
Operating | Temperature: 0 ~ 50 Degree C Relative Humidity: 20 ~ 95% |
Storage | Temperature: -10 ~ 70 Degree C Relative Humidity: 20 ~ 95% (non-condensing) |
Hardware Specification | |
Copper Ports |
5 10/100/1000Base-T RJ-45 Auto-MDI/MDI-X ports with IEEE 802.3af/at PoE |
SFP/mini-GBIC Slots |
1 1000Base-SX/LX/BX SFP interfaces |
Switch Architecture |
Store-and-Forward |
Switch Fabric |
12Gbps / non-blocking |
Switch Throughput |
8.928Mpps@64 bytes
|
Address Table |
8K entries |
Share Data Buffer |
4Mbytes |
Flow Control |
Back pressure for Half-Duplex IEEE 802.3x Pause Frame for Full-Duplex |
LED | System: Power ,PoE In-Use ( yellow) 10/100 LINK / ACT(Green), 1000 LINK ( yellow) |
Dimension (W x D x H) |
185*124*44mm , 1U height |
Weight |
1 kg |
Power Requirement |
100~240V AC, 50-60 Hz |
Power Consumption / Dissipation |
65 Watts maximum |
Power over Ethernet | |
PoE Standard |
IEEE 802.3af/at Power over Ethernet / PSE |
PoE Power Supply Type |
End-Span |
PoE Power Output | Per Port 52V DC, af:350mA. Max. 18.2 Watts at:600mA. Max.31.2 Watts |
Power Pin Assignment |
1/2(+), 3/6(-) |
PoE Power Budget |
65Watts |
PoE Ability | Number of PD @15.4W watts:4
|
