Product Overview
Modern business networks are used for increasingly diverse applications – traditional data streams, VoIP voice traffic, video output from digital security cameras and remote control devices to name a few. The range of devices attached to today's converged network often need to be supported not just in terms of data – equipment such as VoIP IP telephones and Wireless Access Points frequently need to be powered in physical locations where mains power is not available or difficult to deliver. Providing power to such devices via an Ethernet UTP cable is an elegant and easy to implement solution.
compatible to IEEE802.3af/at. It can power both existing10/100Base-T network devices Wi-MAX and wireless
IEEE 802.11n access points.
|
PoE Standard | IEEE 802.3af/at Power over Ethernet / PSE |
PoE Power Supply Type | End-Span |
PoE Power Output | Per Port 52V DC, 350mA~600ma . Max. 30 Watts |
Power Pin Assignment | 1/2(+), 3/6(-) |
PoE Power Budget | 320 Watts |
Max. number of Class 3 PD | 16 |
|
Standards Compliance | IEEE802.3:10Base-T
IEEE802.3u: 100BaseTX
IEEE802.3z:1000Base-SX/LX
IEEE802.3ab:1000Base-T
IEEE802.3af/at:
Power over Ethernet |
|
Operating | Temperature: 0 ~ 50 Degree
C Relative Humidity: 20 ~ 95% |
Storage | Temperature: -10 ~ 70 Degree C
Relative Humidity: 20 ~ 95% (non-condensing) |
|

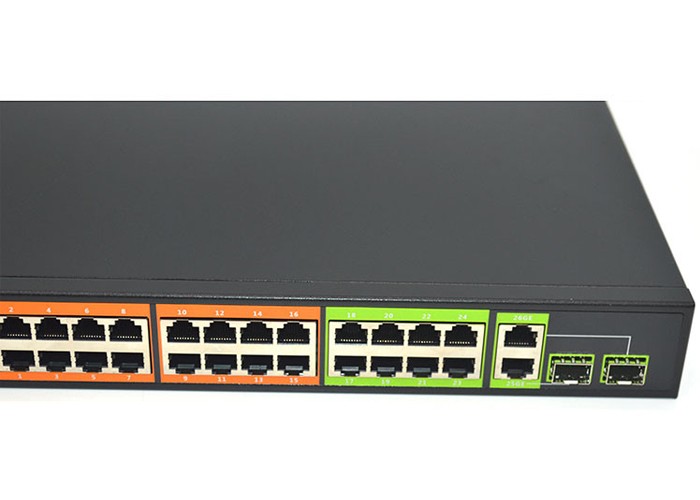

10/100Mbps Copper Ports | 24 10/ 100Base-TX RJ-45 Auto-MDI/MDI-X ports |
1000Mbps Copper Ports | 2 10/100/1000Mbps RJ-45 Auto-MDI/MDI-X ports |
SFP/mini-GBIC Slots | 2 1000Base-SX/LX, shared with Port-25~Port-26 |
Switch Architecture | Store-and-Forward |
Switch Fabric | 8.8Gbps / non-blocking |
Switch Throughput | 6.547Mpps @64Bytes |
Address Table | 8K entries |
Share Data Buffer | 512Kbytes |
Maximum Frame Size | 9K Bytes |
Flow Control | Back pressure for Half-Duplex
IEEE 802.3x Pause Frame for Full-Duplex |

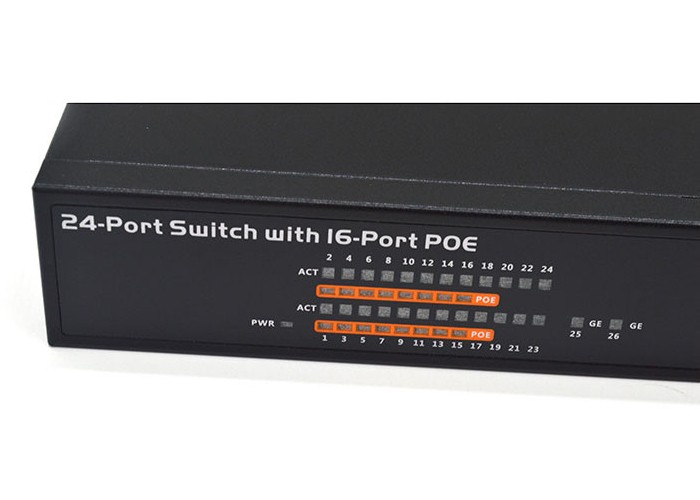

LED | Power, PoE (yellow )
10/100 LINK / ACT (Green)
1000 ACT(Green);1000 LINK(yellow) |
Reset Button | < 5 sec: System reboot
> 5 sec: Factory Default |

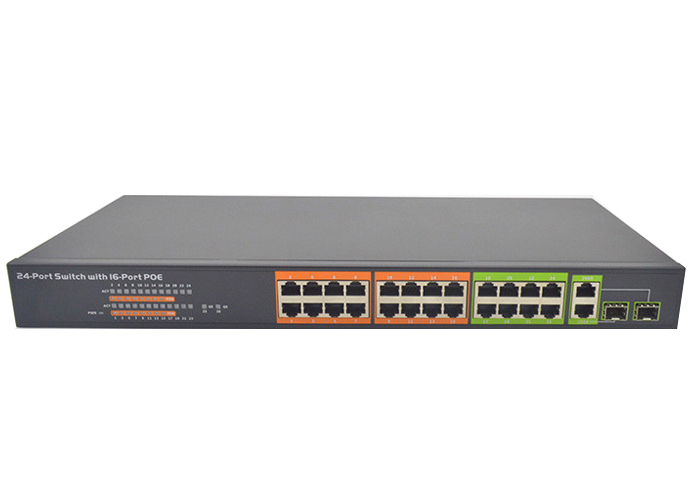

Dimension (W x D x H) | 440 x 220 x 44 mm, 1U height |
Weight | 4 kg |
Power Requirement | 100~240V AC, 50-60 Hz |
Power Consumption / Dissipation | 350 Watts maximum /1194 BTU/hr maximum |
