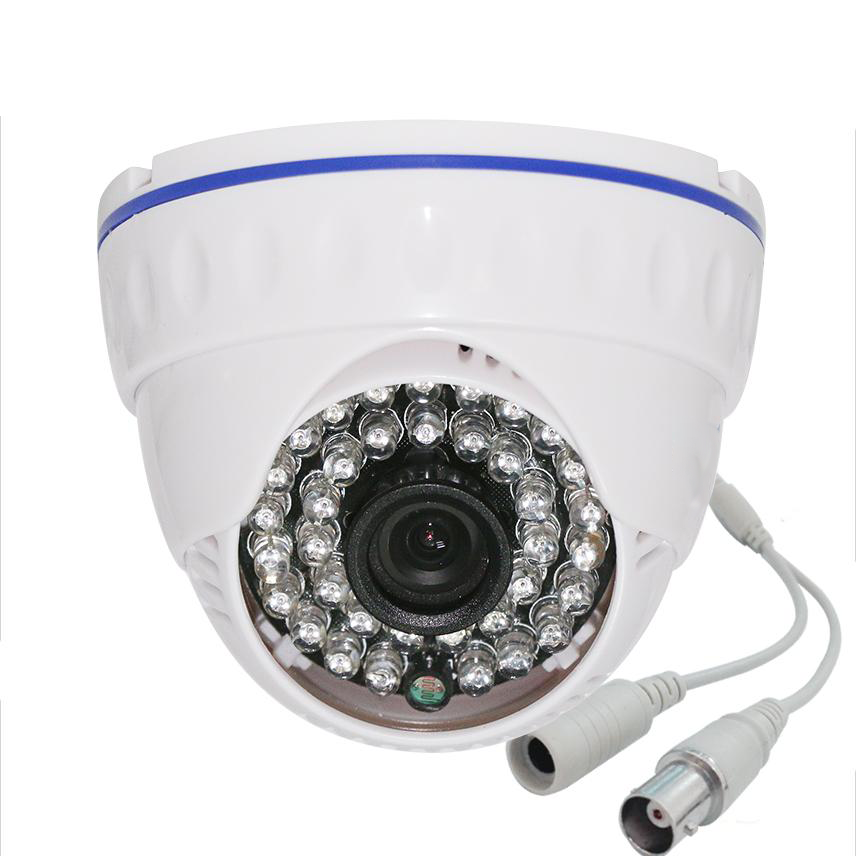

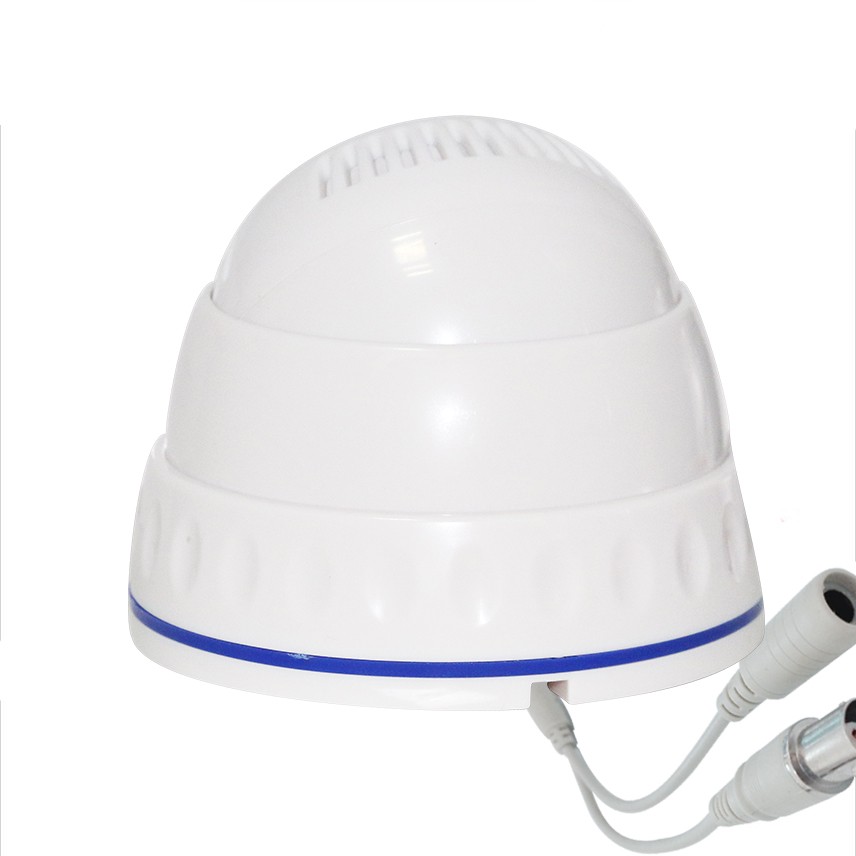

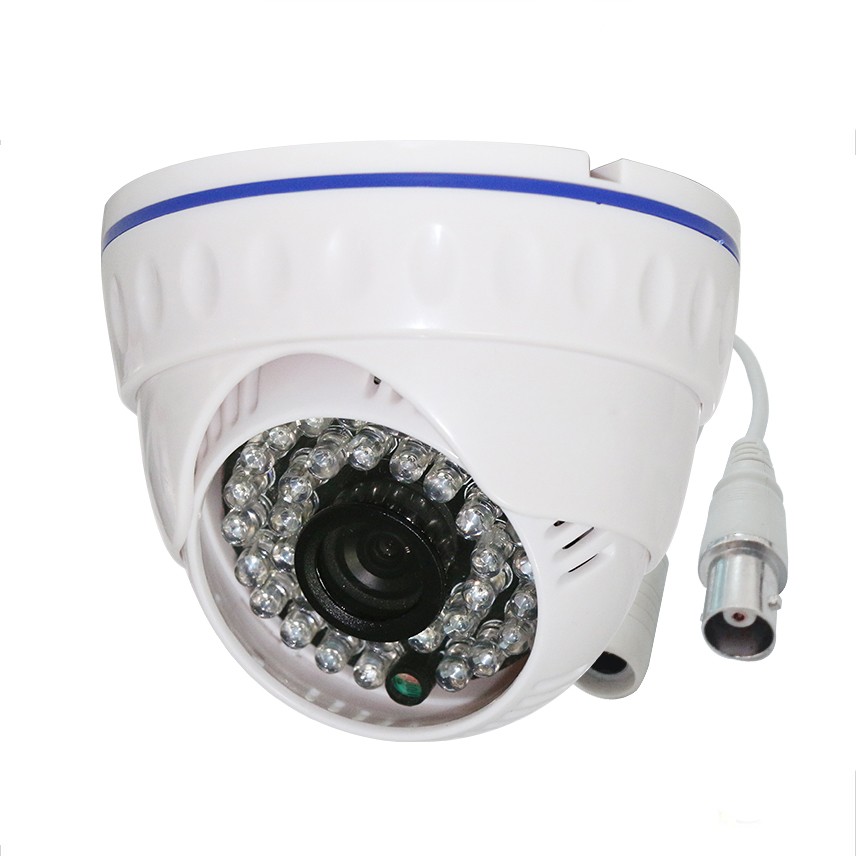

AHDH 1080P Mini Dome Security Analog CCTV Camera indoor IR CUT Night Vision Plug and Play

TIP:


1. This camera provide 3.6/6/8 mm lens. Pls choose the right one .

2. This package do not include the power adapter or BNC cable.if you need power for this camera .pls click the following link to get(very cheap):

3. Make sure you have a AHD DVR for the AHDH cameras .you will can't view or record without it . It is very very very important !!! Pls don't buy it if you don't have AHD DVR for AHDH or AHDNH/1080N!!!

4. package:1pcs Camera+1pcs Screw bag+1pcs Guide


MUST work with AHD DVR.



Best choice for project reconstruction.

You can upgrade an old analog security system to 1.0MP/1.3MP HD cameras without changing cable routes.

AHD (Analog High Definition), a new video format for enhanced CVBS (COMET*) & HD video transmission.

HD AHD camera is an over-coaxial-cable analog HD video transmission standard, allowing long-distance HD transmission at a lower cost to meet the requirements for a complex and large installation.

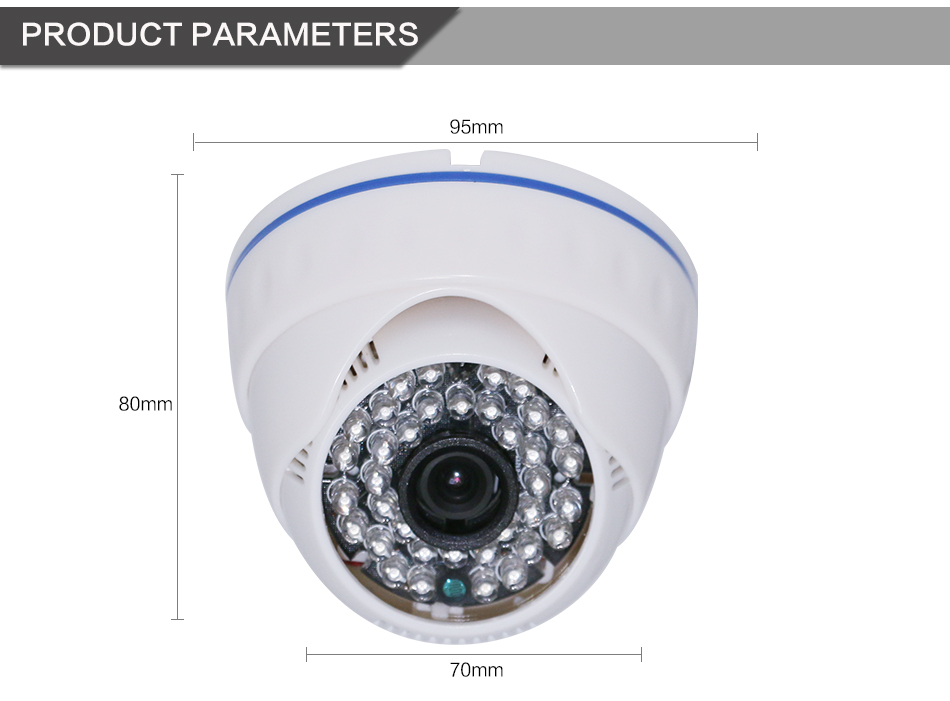

Specifications
Image Sensor

1/4" 1.0MP CMOS Sensor

1/3" 1.3MP CMOS Sensor

1/2.8" 2MP CMOS Sensor

TV SystemPAL/NTSC
IR CUTYes
Active Pixel1280*7201280*9601920*1080
SYNC.Internal
Resolution720P960P1080P
VIDEO OUT1Vp-p,75ohm, BNC
Minimum Illumination0 Lux ( When IR is on)
Auto compensationAuto
IR LEDsYES
IR Distanceabout 10-15M
Lens3.6 mm default
Electric Shutter1/50s-1/50000s
S/N Ratio>50dB
Day/NightAuto(ICR) / Color / B/W
Power SupplyDC12V±10%
WaterproofIndoor
Working temperature-15°~50°
Transmission distanceOver 500m via 75-3 coaxial cable




Mechanical IR-Cut Filter

The camera has a built-in mechanical IR-cut filter placed in front of the image sensor to filter out infrared light in the daytime, producing better color reproduction. At nighttime or when the built-in light sensor detects low-light conditions, IR-cut filter is automatically removed to achieve better light sensitivity.

What is an IR Cut Filter?

An Automatic IR Mechanical Cut Filter blocks infrared light but allows colors visible to the naked eye to pass through. During low/no light conditions, the IR Cut Filter moves away from the lens to let in100% of the infrared light for maximum night vision performance. This results in the camera image changing to Black and White for better image quality.

NOTE: Not all Day/Night Cameras have an Auto IR Cut filter.
